Wb-At Acoustical Tile
Access Door

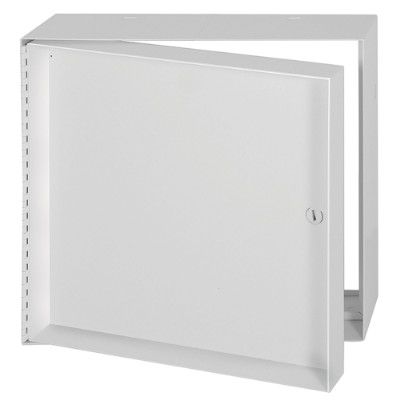

The WB-AT Acoustical Tile Access Door is a ceiling precision door that provides a virtually concealed installation, keeping acoustical surfaces intact while contributing to sound control and better appearance. Door is recessed to accept up to 5/8” thick acoustical tile. Each door comes complete with grommets.
Download Product Sheet PDF
Features
16 ga. cold rolled steel. Door is recessed to accept up to 5/8" acoustical tile.
16 ga. cold rolled steel
Continuous piano hinge opens 180 degrees, will be placed on long side of door unless otherwise requested.
Flush, stainless steel cam operated with screwdriver. Latches positioned opposite hinge as well as top and bottom on larger sizes.
White powder coat paintable finish
(at extra cost)
Medium barrel cylinder lock
Dimensions
Elevation
Section Detail
Size = A x B (w x h)
Rough ceiling opening = door size + 1/4”
