Wb-Nt No Trim
Access Door

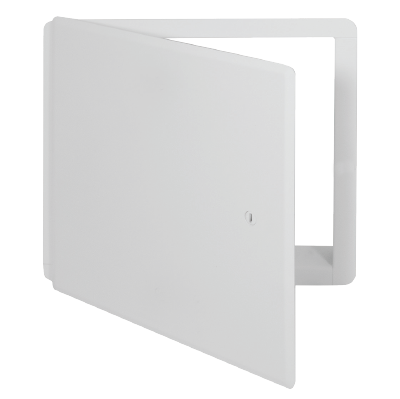

The WB-NT No Trim Access Door features a seamless look. An attractive beveled edge door and micro-rounded corners make this an architect favorite. The door features an off-set hinge that allows it to open 180 degrees, while completely hiding the frame from view.
Download Product Sheet PDF
WB-NT
Features
Door and Trim
16 ga. cold rolled steel
Return Frame
18 ga. cold rolled steel
Hinge
Fully concealed off-set hinge
Latch
Flush, stainless steel cam
Finish
White powder coat paintable finish
Options
(at extra cost)
(at extra cost)
- Tamper Proof Cam Hex, Torx Pin Screw Assembly
- Key cylinder lock with key (code 151)
- Mortise Lock Preparation
- Stainless Steel #304 or #316 (#4 satin finish)
Dimensions
Elevation
Section Detail
Model No.
Size
Latch
Shipping Weight (lbs.)
WB-NT 8x8
8” x 8”
1
3
WB-NT 10x10
10” x 10”
1
4
WB-NT 12x12
12" x 12"
1
6
WB-NT 14x14
14" x 14"
1
7
WB-NT 16x16
16" x 16"
1
9
WB-NT 18x18
18" x 18"
3
10
WB-NT 20x20
20" x 20"
3
13
WB-NT 22x22
22” x 22”
4
15
WB-NT 24x24
24” x 24”
4
17
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
