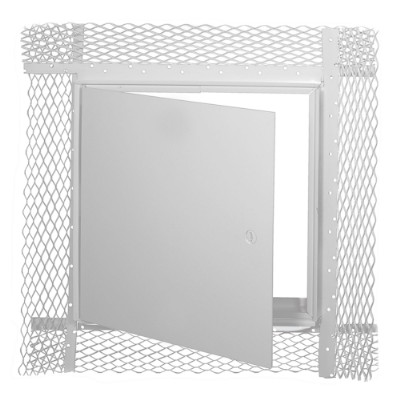

The WB-PL Plaster Access Door is a flush door designed for wall and ceiling application, featuring a tape-in plaster bead. This allows for plaster mud to be applied to the flange concealing it. The 1/4" safety edge gives the door a strong frame and prevents the plaster from being chipped under normal use.
16 ga. cold rolled steel
16 ga. steel. 3” wide plaster mesh flange of 24 ga. galvanized material. Space from the expanded flange to the 1/4” safety edge of the door will accommodate 1” of plaster.
Fully-concealed off-set hinge up to and including 24”x24”. Number of hinges varies with size of the door and will be placed on long side of door unless otherwise specified. Doors larger than 24”x24” have full length piano hinge.
Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
White powder coat paintable finish
Elevation
Section Detail
Size = A x B (w x h)
Rough wall opening = door size + 1/4"
PH = Full length piano hinge
