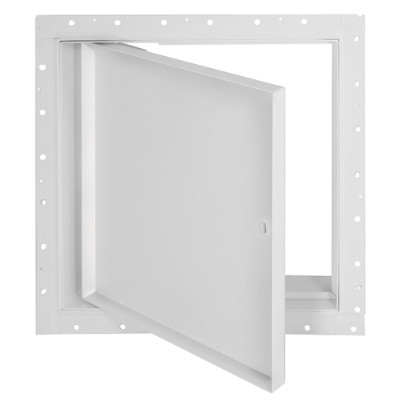

The WB-RDW Recessed Drywall Access Door features a 5/8” recessed pan that gives the option of installing a matching piece of drywall into the door panel, keeping the continuity of the visual area. The outdoor frame has a tape-in flange so that the unit may be cemented in place at the time of installation.
16 ga. cold rolled steel. Door is recessed 5/8” to accept drywall.
16 ga. cold rolled steel. 1” wide perforated
24 ga. galvanized steel for mounting purposes.
Fully concealed rod type hinge, will be placed on long side of door unless otherwise requested.
Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
White powder coat paintable finish
Elevation
Section Detail
Size = A x B (w x h)
Rough wall opening = door size + 1/4"
