Wb-Dw Drywall
Access Door

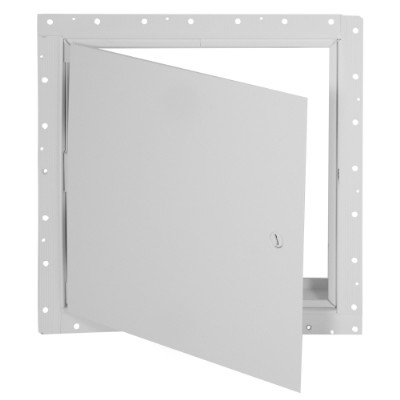

The WB-DW Drywall Access Door has the same quality features as the WB-GP Premium with a tape-in drywall flange. This is designed to eliminate visual distraction, by allowing drywall cement to be applied to cover the flange at the time of installation.

WB-DW Product SheetDownload Product Sheet PDF
Request a Quote
WB-DW
WB-DW

Features

Door and Trim

16 ga. cold rolled steel door with 1” drywall bead and 24 ga. galvanized steel trim for mounting purposes

Frame

16 ga. cold rolled steel

Hinge

Fully-concealed off-set hinge up to and including 24”x24”. Number of hinges varies with size of the door and will be placed on long side of door unless otherwise specified. Doors larger than 24”x24” have full length piano hinge.

Latch

Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.

Finish

White powder coat paintable finish

Options
(at extra cost)
  • Key cylinder lock with key (code 151)
  • Air-tight Neoprene Gasketing
  • Stainless steel finish #304 or #316 (#4 satin finish)

Dimensions

Elevation

Elevation

Section Detail

Section Detail

Model No.
Size
Hinges
Latch
Shipping Weight (lbs.)
Steel/Stainless
WB-DW 8x8
8" x 8"
1
1
3
WB-DW 10x10
10" x 10"
1
1
5
WB-DW 12x12
12" x 12"
1
3
7
WB-DW 12x24
12" x 24"
3
2
12
WB-DW 14x14
14" x 14"
2
3
9
WB-DW 16x16
16" x 16"
2
3
11
WB-DW 18x18
18" x 18"
2
3
12
WB-DW 22x22
22" x 22"
3
4
18
WB-DW 22x30
22" x 30"
PH
4
24
WB-DW 22x36
22" x 36"
PH
5
27
WB-DW 24x24
24” x 24”
3
4
20
WB-DW 24x36
24” x 36”
PH
5
27
WB-DW 24x48
24” x 48”
PH
6
37
WB-DW 30x30
30” x 30”
PH
6
29
WB-DW 30x36
30” x 36”
PH
7
31
WB-DW 36x36
36" x 36"
PH
9
42

Size = A x B (w x h)
Rough wall opening = door size + 1/4”
PH = Full length piano hinge
