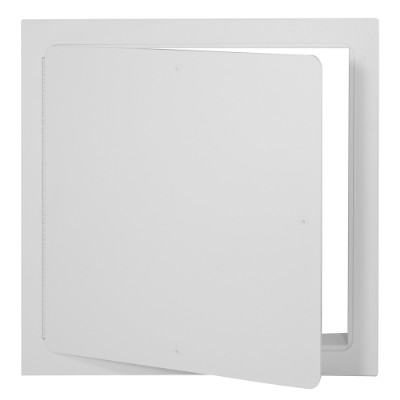

Wb-Ms Medium Security
Access Door
The WB-MS Medium Security Access Door is the door of choice when it is necessary to assure security under institutional conditions. Most detention buildings and mental health facilities require access to vital services in or behind walls, shafts and stairwells without jeopardizing security. The door can be customized to accommodate any mortise lock specified.
Download Product Sheet PDF
WB-MS
Features
Door & Trim
12 ga. cold rolled steel
Frame
16 ga. cold rolled steel
Hinge
Full length piano hinge
Lock
1/4-20 tamper proof screw assemblies
Finish
White powder coat paintable finish
Options
(at extra cost)
(at extra cost)
- Stainless steel #304 and #316 (#4 satin finish)
- Mortise lock preparation with or without cylinder
- Air-tight Neoprene Gasketing
- Cylinder lock with key (code 151)
Dimensions
Elevation
Section Detail
Model No.
Size
Hinges
Locks
Shipping Weight (lbs.)
WB-MS 12x12
12" x 12"
1
1
22
WB-MS 16x16
16" x 16"
1
3
31
WB-MS 18x18
18" x 18"
1
3
36
WB-MS 24x24
24” x 24”
1
4
52
WB-MS 24x36
24” x 36”
1
5
73
WB-MS 36x36
36” x 36”
1
9
103
Size = A x B (w x h)
Rough wall opening = door size + 1/4”
