WB-GP PREMIUM GENERAL
PURPOSE ACCESS DOOR

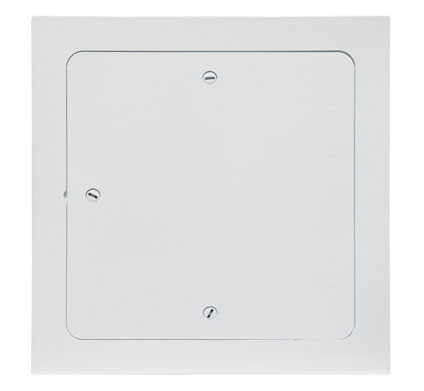

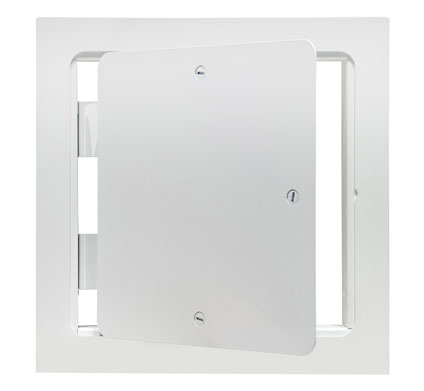

The WB-GP Premium General Purpose Access Door is a precision-flush access door for wall and ceiling applications. The frame is laser cut from one sheet of cold rolled steel with no corner mitering and is the aesthetic preference of architects and building professionals alike.

WB-GP Premium Product SheetDownload Product Sheet PDF
Request a Quote
preview
preview
preview

Features

Door and Trim

14 ga. cold rolled steel, trim 1 1/2” wide

Return Frame

18 ga. cold rolled steel, depth of 1 3/4”

Hinge

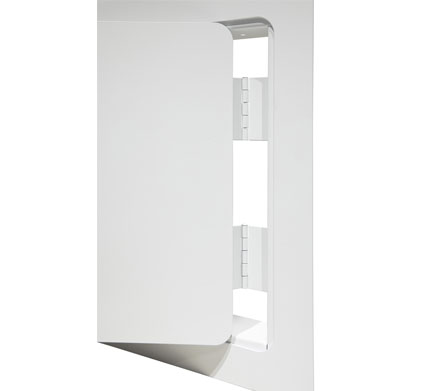

Fully-concealed off set hinge. Allows opening to 170°. Number of hinges varies with size of door and will be placed on long side of door unless otherwise requested.

Latch

Flush, stainless steel cam operated with screwdriver. Doors over 24” will have
semi-concealed piano-type hinge.

Finish

White powder coat paintable finish

Options
(at extra cost)
  • Tamper Proof Cams, Hex, Torx Pin Screw Assembly
  • Key cylinder lock with key (code 151)
  • Mortise Lock Preparation
  • Air-tight Neoprene Gasketing
  • Stainless Steel #304 or #316 (#4 satin finish)
  • Galvanized/Zinc Coating Finish
  • Masonry Anchor Straps
  • Custom Sizes Available

Dimensions

Elevation

Elevation

Section Detail

Section Detail

Model No.
Size
Hinges
Latch
Shipping Weight (lbs.)
Steel/Stainless
WB-GP 6x6
6" x 6"
1
1
4
WB-GP 8x8
8" x 8"
1
1
5
WB-GP 8x12
8" x 12"
1
1
6
WB-GP 8x16
8" x 16"
2
3
8
WB-GP 10x10
10" x 10"
1
1
6
WB-GP 12x12
12" x 12"
1
3
8
WB-GP 12x16
12" x 16"
2
3
10
WB-GP 12x18
12" x 18"
2
3
11
WB-GP 12x24
12" x 24"
3
4
14
WB-GP 14x14
14" x 14"
2
3
10
WB-GP 16x16
16" x 16"
2
3
13
WB-GP 16x20
16" x 20"
3
3
16
WB-GP 16x24
16" x 24"
3
4
17
WB-GP 18x18
18" x 18"
3
3
14
WB-GP 18x24
18" x 24"
3
4
18
WB-GP 18x36
18" x 36"
PH
5
29
WB-GP 20x20
20" x 20"
3
3
17
WB-GP 20x24
20" x 24"
3
4
21
WB-GP 20x30
20" x 30"
PH
4
23
WB-GP 22x22
22" x 22"
3
4
22
WB-GP 22x24
22" x 24"
3
4
23
WB-GP 22x30
22" x 30"
PH
4
25
WB-GP 22x36
22" x 36"
PH
5
32
WB-GP 24x24
24" x 24"
3
4
24
WB-GP 24x30
24" x 30"
PH
4
27
WB-GP 24x36
24" x 36"
PH
5
35
WB-GP 24x48
24" x 48"
PH
6
43
WB-GP 30x30
30" x 30"
PH
6
32
WB-GP 30x36
30" x 36"
PH
7
39
WB-GP 36x36
36" x 36"
PH
9
44
WB-GP 36x48
36" x 48"
PH
10
57
WB-GP 48x48
48" x 48"
PH
12
70

Size = A x B (w x h)
Rough wall opening = door size + 1/4”
PH = Full length piano hinge
