Wb-Hs High Security
Access Door

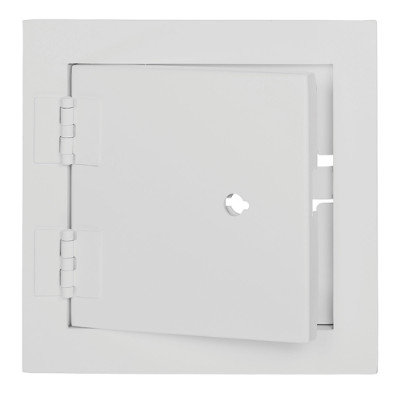

The WB-HS High Security Access Door is designed for installation where maximum security is mandatory. This door comes prepped for a detention lock for controlled access, which is sold separately. It can be prepped for custom mortise locks and requirements.

WB-HS
WB-HS

Features

Door & Trim

10 ga. cold rolled steel

Frame

2”x 3”x 3/16” angle

Hinge

Heavy duty type butt hinges welded to surround and door

Lock

Prepped for detention lock

Finish

White powder coat paintable finish

Options
  • Stainless steel #304 and #316 (#4 satin finish)
  • Custom sizes
  • Detention lock and paracentric key

Dimensions

Elevation

Elevation

Section Detail

Section Detail

Model No.
Size
Hinges
Shipping Weight (lbs.)
Steel/Stainless
WB-HS 12x12
12" x 12"
2
46
WB-HS 16x16
16" x 16"
2
56
WB-HS 18x18
18" x 18"
2
62
WB-HS 24x24
24” x 24”
2
82
WB-HS 24x36
24” x 36”
3
134
WB-HS 36x36
36” x 36”
3
140

Size = A x B (w x h)
Rough wall opening = door size + 3/4”
