Wb-Uad

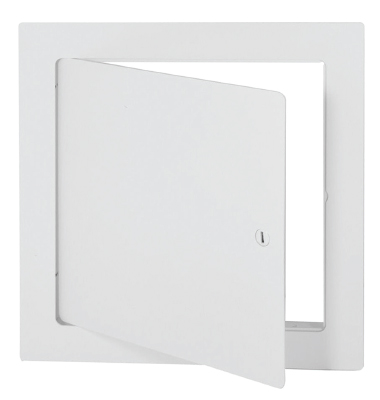

Utility Access Door
The WB-UAD Utility Access Door is an innovative, cost-effective access door. This door is laser cut from 16-gauge cold rolled steel and of uniweld construction that allows for an aesthetically pleasing appearance and square fit for wall and ceiling applications.
Download Product Sheet PDF
WB-UAD
Features
Door and Trim
16 ga. cold rolled steel, trim 1 1/2” wide
Return Frame
16 ga. cold rolled steel, depth of 1 1/4”
Hinge
Rod-Type Hinge on doors up to and including 24”x24”
Piano Hinge used on doors larger than 24”x24”
Latch
Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
Finish
White powder coat finish
Options
(at extra cost)
(at extra cost)
- Tamper Proof Cams, Hex, Torx Pin screw assembly
- Key Cylinder Lock with key (code 151)
- Mortise Lock Preparation
- Stainless Steel #304 or #316 (#4 satin finish)
- Custom Sizes Available
Dimensions
Elevation
Section Detail
Model No.
Size
Latch
Clear Opening
Shipping Weight (lbs.)
Steel/Stainless
Steel/Stainless
WB-UAD 6x6
6" x 6"
1
3.75" x 4.625"
2
WB-UAD 8x8
8” x 8”
1
5.75" x 6.625"
3
WB-UAD 8x12
8" x 12"
1
5.75" x 10.625"
4.1
WB-UAD 10x10
10” x 10”
1
7.75" x 8.625"
4
WB-UAD 12x12
12" x 12"
1
9.75" x 10.625"
5
WB-UAD 14x14
14" x 14"
3
11.75" x 12.625"
6
WB-UAD 16x16
16" x 16"
3
13.75" x 8.625"
8
WB-UAD 18x18
18" x 18"
3
15.75” x 16.625”
9
WB-UAD 18x24
18" x 24"
3
15.75” x 22.625”
14.1
WB-UAD 20x20
20" x 20"
3
17.75” x 18.625”
11
WB-UAD 22x22
22” x 22”
4
19.75” x 20.625”
13
WB-UAD 22x30
22” x 30”
4
19.75” x 28.625”
16.1
WB-UAD 22x36
22” x 36”
5
19.75” x 34.625”
17.1
WB-UAD 24x24
24” x 24”
4
21.75” x 22.625”
15
WB-UAD 24x30
24” x 30”
4
21.75” x 28.625”
17
WB-UAD 24x36
24” x 36”
5
21.75” x 34.625”
22.5
WB-UAD 24x48
24” x 48”
6
21.75” x 46.625”
30
WB-UAD 30x30
30” x 30”
6
27.75” x 28.625”
21
WB-UAD 36x36
36” x 36”
9
33.75” x 34.625”
28
Size = (w x h)
Clear Opening = (w x h)
Rough wall opening = door size + 1/4”
